ZHR-MEC-FT-FW-02-400-10 is a compact RS485 micro servo electric cylinder for precision linear adjustment. It provides 2mm stroke, 400N rated force, 600N maximum force, and +/-0.002mm repeatability for coating die-head control, T-block adjustment, precision fixtures, and compact automation axes.
Product features and selection notes
Search-intent fit
ZHR-MEC-FT-FW-02-400-10 is a compact RS485 micro servo electric cylinder for precision linear adjustment. It provides 2mm stroke, 400N rated force, 600N maximum force, and +/-0.002mm repeatability for coating die-head control, T-block adjustment, precision fixtures, and compact automation axes.
Compact precision actuation
Integrated motor, screw transmission, guided output, communication, and short-stroke control help reduce external transmission parts in compact machines.
High-force small-format output
400N rated force and 600N maximum force support direct comparison for coating adjustment, push-pull tooling, or robotic hand force sizing.
Integration checkpoints
Use these four values as the first reference for controller, wiring, body envelope, and installation fit.
- 01Control
- RS485
- 02Wiring
- Aviation plug
- 03Body / Envelope
- 20mm
- 04Installation Fit
- T >= 25mm
Technical specifications
| Stroke | 2mm |
|---|---|
| Rated Voltage | 12V |
| Repeatability | +/-0.002mm |
| Operating Temperature | -10~60°C |
| Rated Force | 400N |
| Maximum Force | 600N |
| Rated Current | 800mA |
| Peak Current | 2A |
| Communication | RS485 |
| Screw | Planetary roller screw |
| Motor | Coreless brushless DC motor |
| Output / Wiring | Aviation plug |
| Cylinder Size | 20mm |
| T-Block Fit | T >= 25mm |
Use these values to compare stroke, force, repeatability, current draw, and integration fit.
Use this model when the fit is right
This guidance is written for engineering selection. Confirm duty cycle, mounting stiffness, thermal conditions, and controller integration before production use.
Use this model when
- Coating die-head, T-block, or compact fixture adjustment needs small repeatable linear motion.
- The machine needs RS485-addressable electric control instead of manual or pneumatic adjustment.
- The available installation envelope favors a direct or folded micro electric cylinder package.
Check alternatives when
- The axis requires long-travel motion beyond the listed 2-12 mm stroke range.
- The application needs a higher continuous load than the rated force or unverified impact loading.
- The mechanism cannot provide adequate guidance, stiffness, or protection for the actuator installation.
Questions about ZHR-MEC-FT-FW-02-400-10
Use these answers for model-level selection, integration review, and comparison with other compact linear actuators.
What is ZHR-MEC-FT-FW-02-400-10 best used for?
ZHR-MEC-FT-FW-02-400-10 is a compact RS485 micro servo electric cylinder for precision linear adjustment. It provides 2mm stroke, 400N rated force, 600N maximum force, and +/-0.002mm repeatability for coating die-head control, T-block adjustment, precision fixtures, and compact automation axes.
What are the key specifications of ZHR-MEC-FT-FW-02-400-10?
Key specifications include 2mm stroke, 400N rated force, 600N maximum force, +/-0.002mm repeatability, 12V rated voltage, and RS485 communication.
When should I avoid selecting ZHR-MEC-FT-FW-02-400-10?
Avoid this model when the mechanism requires a longer stroke, outdoor environmental sealing, a higher continuous load than the rated force, or a speed and duty-cycle profile that has not been checked against the machine requirement.
Why use a micro servo electric cylinder for coating adjustment?
Coating die-head and T-block adjustment need stable, repeatable small motion. A compact servo electric cylinder can replace manual trimming or pneumatic adjustment when the machine needs addressable electric control and repeatable setup values.

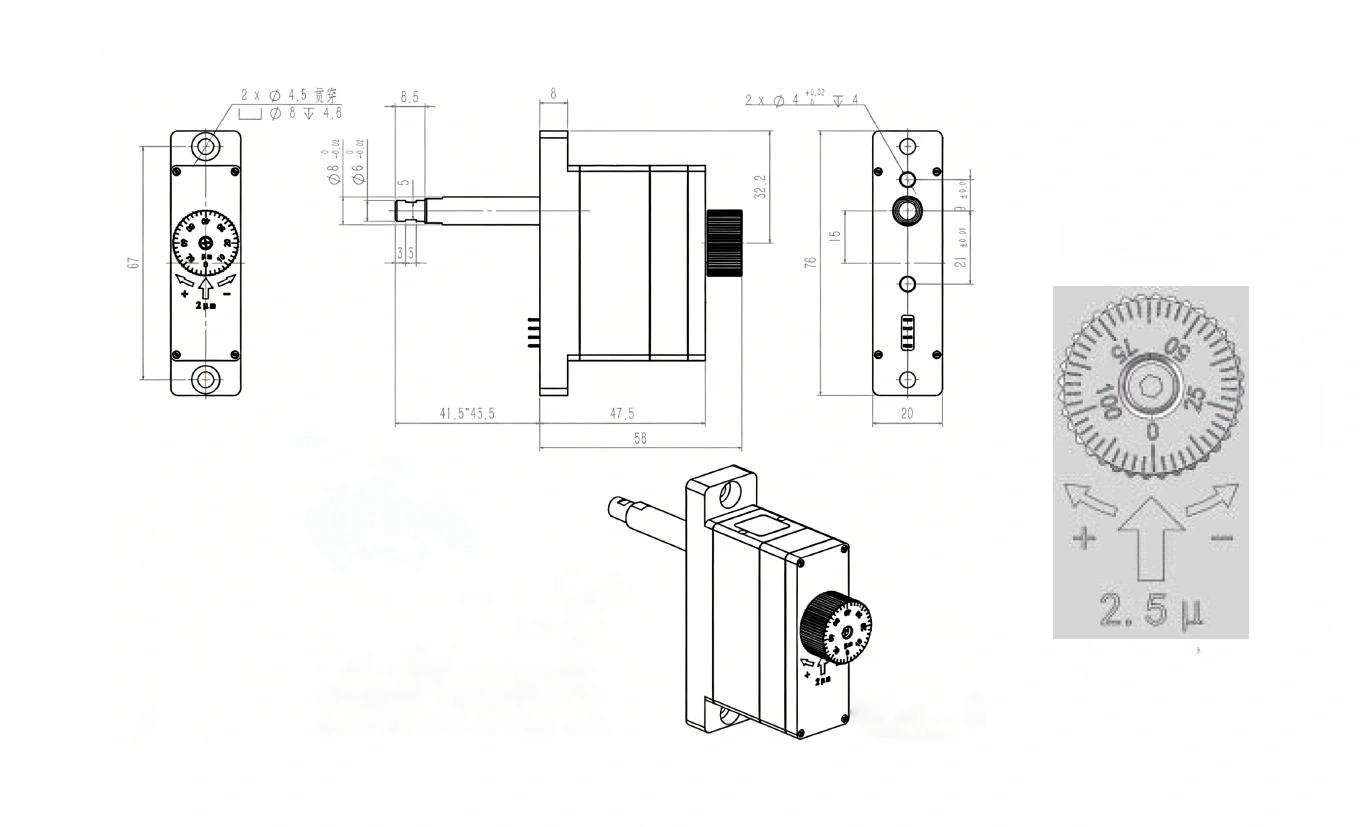

Dimension drawing
