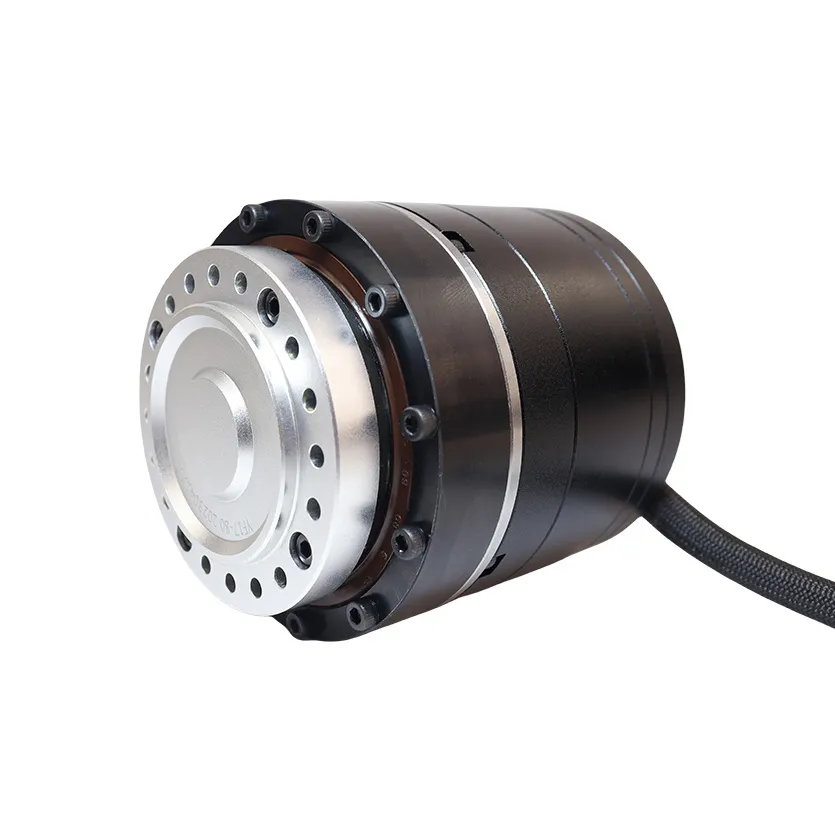

Industrial-Grade Robot Joint Motors Built for Scalable Deployment

This is a classic trade-off. In the harmonic reducer vs planetary gear debate, Harmonic Reducers are preferred for precision tasks (like 6-DOF arms) due to their near-zero backlash and compact high reduction ratios. Conversely, our Planetary Gear modules are better for high-impact, high-speed movements (like Humanoid Robot legs) due to their superior back-drivability. Our planetary series uniquely incorporates a Dual Encoder system to mitigate inherent backlash, offering a balanced precision solution.

Designed for dynamic Humanoid Robot applications, our modules feature an optimized thermal path from the stator to the aluminum housing. Unlike hobbyist motors that only state "Peak Torque", our Integrated Joint Motor provides transparent "Continuous Torque" curves based on real thermal data. This ensures stable operation during high-duty cycles, solving common overheating issues found in standard BLDC motors.

Our Planetary Gear series features a sophisticated Dual Encoder architecture: one high-resolution encoder on the motor side and a second Mechanical Multi-turn Absolute Encoder on the output side. This allows the FOC Controller to compensate for gear deflection and backlash in real-time. This configuration gives our planetary modules a significant edge in position accuracy that standard single-encoder modules cannot match.

Yes, we provide a fully supported ROS2 Driver and a Docker container pre-configured for Nvidia Jetson and x86 platforms. Our SDK also includes C++ and Python APIs, making it easier to integrate our Robotic Actuator into your existing motion planning stack.

Designed for 24/7 industrial use, our Robot Joint Motor features high-grade bearings and industrial lubricants. For joints requiring continuous rotation, we use industrial slip rings rated for millions of cycles. Our design incorporates strain-relief structures for cables to prevent fatigue failure, a common pain point in Robot Joint maintenance.
