High-Force Brushless
Servo Electric Cylinders
Engineered for precision robotic fingers, micro grippers, medical diagnostic instruments, and compact industrial actuators. Delivering up to 300N force in an ultra-slim Ø13mm - Ø16mm envelope with ±0.02mm repeatability.
How does the ZHR-BC series replace pneumatic cylinders in precision robotic linear joints?
Verdict: The ZHR-BC series eliminates pneumatic air compressors, pressure drop variations, and bulky tubing by providing multi-point programmable positioning (±0.02mm) with up to 300N stall force in a self-contained Ø13–Ø16mm body.
| Engineering Dimension | ZHR-BC Brushless Electric Cylinder | Miniature Pneumatic Cylinder | Stepper Motor Linear Actuator |
|---|---|---|---|
| Positioning Repeatability | ±0.02 mm | ±0.2 ~ 0.5 mm | ±0.05 mm |
| Peak / Stall Force | Up to 300 N (30mm stroke) | 50 ~ 120 N (Dependent on line pressure) | 60 ~ 150 N |
| Maximum Speed | > 60 mm/s | Uncontrolled / high impact at end stops | 15 ~ 30 mm/s (Risk of losing steps) |
| Cleanliness & Maintenance | Zero oil mist, maintenance-free brushless | Air compressor leaks & seal replacement | Moderate wear & audible resonance |
| Wiring & Harness | Single DF-10PIN (Power + Bus + Feedback) | Pneumatic air lines + solenoid wiring | 4-wire motor + separate limit switches |
Heavy Thrust in Slim Body
Generates 100N to 300N of maximum push/pull force from a compact Ø13mm or Ø16mm outer diameter, enabling ultra-tight spacing in multi-axis fixtures.
±0.02mm Micro-Repeatability
Precision-ground planetary roller/lead screw mechanics provide deterministic, repeatable sub-millimeter positioning without overshoot or thermal drift.
Brushless Motor Reliability
High-torque brushless DC core motor architecture eliminates brush wear and carbon dust, ensuring long operating life and cleanroom compatibility.
Standardized DF-10PIN
Single integrated DF-10PIN connector carries power, control signals, and feedback, drastically reducing harness bulk inside robotic arms and dexterous hands.
ZHR-BC Model Specifications

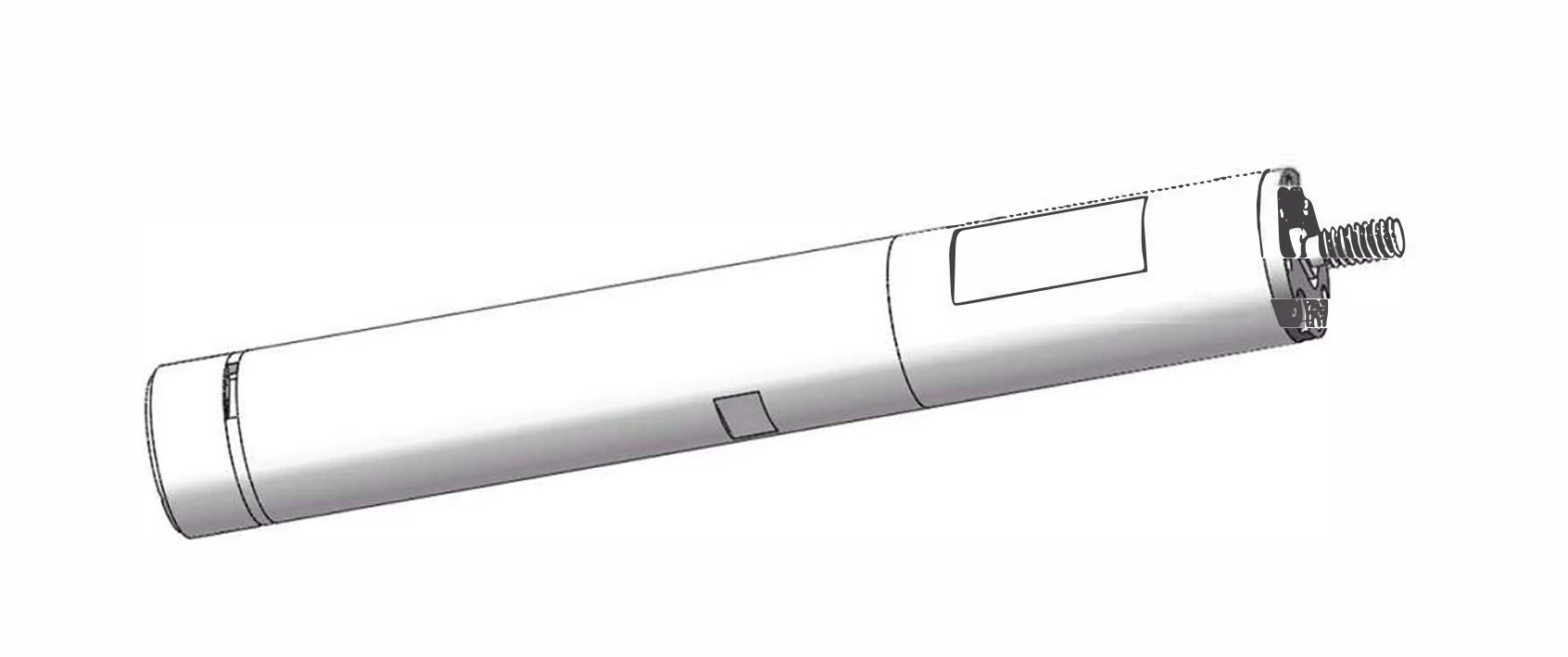

ZHR30-100 Series
12V DCUltra-compact Ø13mm electric cylinder designed for 12V DC low-voltage battery systems. Ideal for precision 30mm linear strokes where radial space is at an absolute premium.
Key Technical Parameters
- Effective Stroke
- 30 mm
- Rated Push/Pull Force
- 52 N
- Max Push/Pull Force
- 100 N
- Stall Force
- 100 N (Peak)
- Max Running Speed
- > 60 mm/s
- Repetition Accuracy
- ±0.02 mm
- Rated / Peak Current
- Rated 0.8A / Max 1.65A

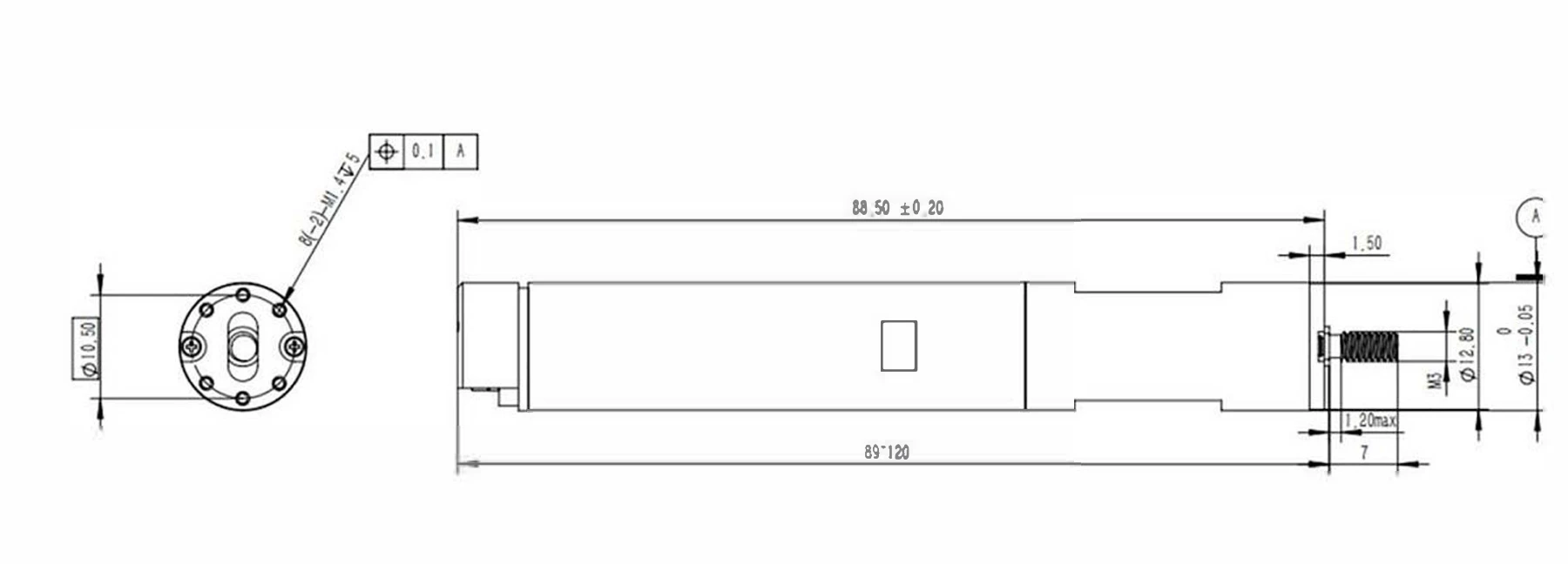

- Outer Diameter & Length
- Ø13mm | Retracted 88.5mm, Total 89-120mm
- Mounting & Shaft
- M3 Threaded Shaft, 8(-2)-M1.4 Flange Mount
- Operating Temperature
- -10°C ~ 80°C
- Interface Connector
- DF-10PIN
ZHR-BC Series Specification Matrix
Direct comparison of stroke, force, voltage, and dimensions across all three production models.
| Model Code | Stroke | Voltage | Rated Force | Max Force | Stall Force | Max Speed | Accuracy | Current | Envelope | Action |
|---|---|---|---|---|---|---|---|---|---|---|
|
ZHR30-100
Ultra-Slim 12V
|
30 mm | 12V DC | 52 N | 100 N | 100 N (Peak) | > 60 mm/s | ±0.02 mm | 0.8A / 1.65A | Ø13mm × 88.5mm | Get Quote |
|

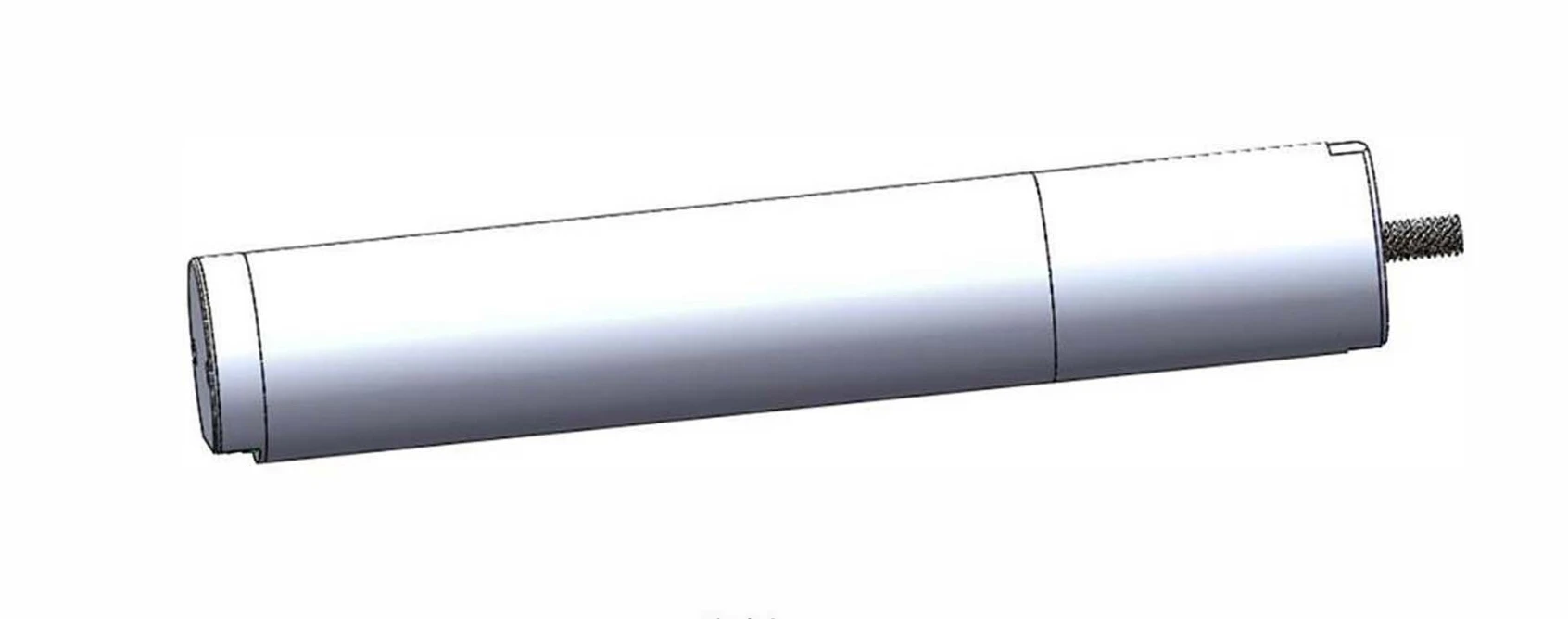

ZHR30-300
Heavy Thrust 24V
|
30 mm | 24V DC | 140 N | 280 N | 300 N | > 60 mm/s | ±0.02 mm | Peak 1.8A | Ø16mm × 90.0mm | Get Quote |
|
ZHR25-255
High Guided Rigidity
|
25 mm (lim 26) | 24V DC | 125 N | 240 N | 255 N | > 60 mm/s | ±0.02 mm | Peak 1.8A | Ø16mm × 75.0mm | Get Quote |
Instant 3D STEP & Engineering Drawing Download
Check clearances, simulate strokes, and verify bolt patterns directly inside SolidWorks, Autodesk Inventor, or PTC Creo. Enter your work email below to receive the complete CAD package for all ZHR-BC models.
Request CAD Package
Delivered automatically to your business inbox within 30 seconds.
Designed for Demanding Applications
From humanoid robotic manipulation to sub-millimeter medical diagnostics, ZHR-BC delivers repeatable linear actuation where space is restricted.
Robotic Hands & Dexterous Grippers
Slim Ø13-16mm profiles allow mounting directly inside forearm arrays or multi-finger bases to actuate tendon cables or pushrods with up to 300N of gripping force.
Medical & Laboratory Automation
Zero hydraulic fluid, zero pneumatic compressor requirements, and cleanroom-compatible brushless design make it the gold standard for pipetting, syringe pumps, and specimen positioning.
Semiconductor & Optical Alignment
±0.02mm repeatability and deterministic position holding under load ensure microscopic alignment stability for lenses, wafer clamps, laser positioning, and die-head adjustment.
Frequently Asked Questions
How does the ZHR-BC series compare to conventional pneumatic cylinders?
Unlike pneumatic cylinders that only stop at two fixed ends and require compressed air lines, valves, and noisy compressors, ZHR-BC provides fully programmable multi-point positioning, controllable thrust (up to 300N), ±0.02mm repeatable accuracy, and quiet, energy-efficient electric power.
What is the difference between ZHR30-100, ZHR30-300, and ZHR25-255?
ZHR30-100 is an ultra-slim Ø13mm, 12V unit with 30mm stroke and 100N maximum force for battery-powered or ultra-tight builds. ZHR30-300 is a 24V, Ø16mm unit delivering up to 300N of stall force with 30mm stroke. ZHR25-255 offers 25mm stroke with an integrated copper front guide sleeve for applications requiring superior lateral rigidity and up to 255N of stall force.
What interface and connector are provided?
All models utilize a standardized DF-10PIN connector. The pinout integrates motor power, ground, serial communication (RS485 / CAN depending on controller configuration), and internal position sensor feedback. Detailed wiring diagrams and pin definitions are included in the downloadable CAD package.
What is the prototype sample lead time and MOQ?
We maintain an engineering evaluation policy with an MOQ of just 1 unit. Standard prototype units are typically prepared and dispatched within 2 to 3 weeks via DHL/FedEx worldwide air express.
