ZHREC-T120-S10-BF
Brushless Servo Electric Cylinder
Stroke
10 mm
Max Force
120 N
Interface
RS232
Technical Specifications
| Motion & Performance | |
| Model | ZHREC-T120-S10-BF |
| Stroke | 10 mm |
| Running Speed | 10 mm/s |
| Maximum Push/Pull Force | 120 N |
| Stall Push/Pull Force | 150 N |
| Repetition Accuracy | 0.02 mm |
| Electrical & Files | |
| Voltage | 12 V |
| Peak Current | 1.2 A |
| Communication Interface | RS232 |
| Operating Temperature | -10C to 80C |
| 3D Model Files | STEP / SLDPRT / PRT available |
| Source Data | Verified catalog sheet |

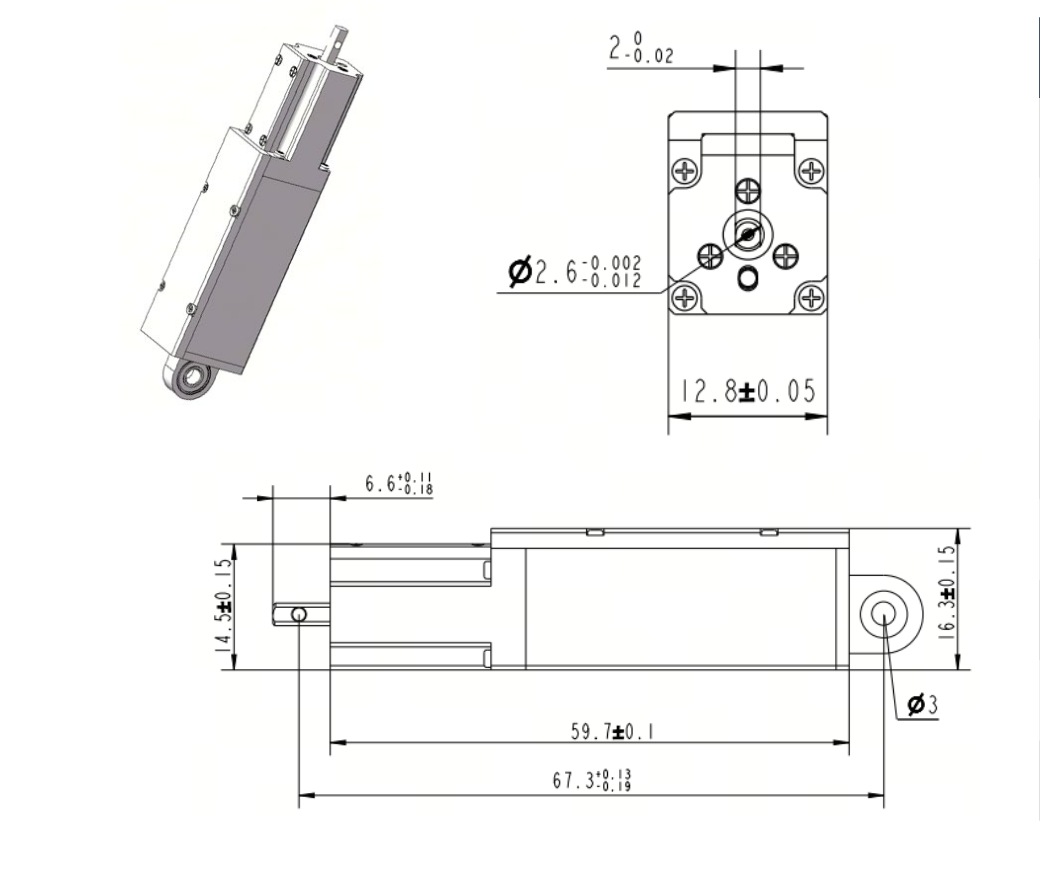

Dimension Drawing
